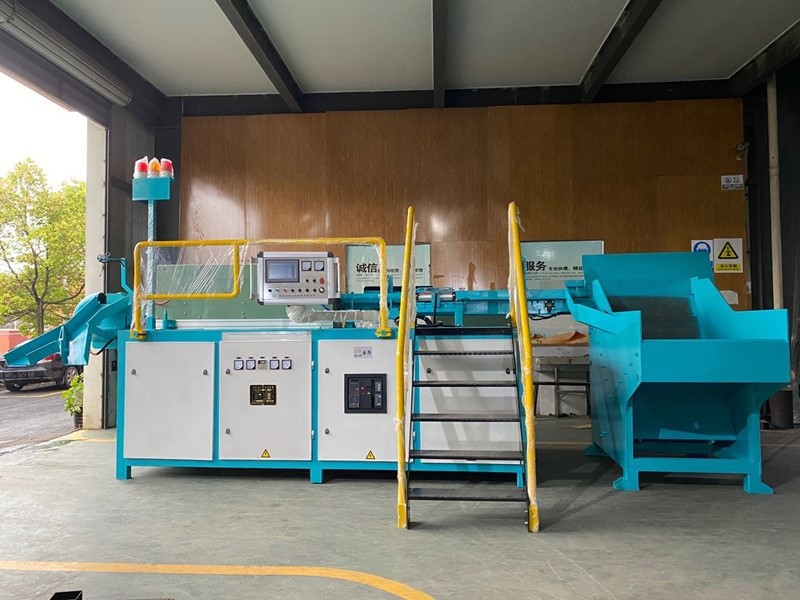

Induction Heating Furnace with Precise Control System

Medium frequency induction heating Equipment is a device that converts direct current into medium frequency current and is usually used to heat metal materials. This equipment uses the principle of electromagnetic induction to generate eddy currents in metal materials, thereby rapidly heating the metal materials.

The core component of the heating equipment is the induction coil, which generates an alternating magnetic field through medium-frequency current. The metal material generates eddy currents in this magnetic field, thereby heating. This heating method has the advantages of efficient, energy-saving and environmental protection.

Medium frequency induction heating equipment are widely used in metallurgy, casting, machinery manufacturing and other fields. It can achieve rapid melting, precise temperature control, improve product quality and reduce energy consumption, etc., bringing significant economic and social benefits to enterprises.



Precise temperature measurement/Automatic closed loop power control system

The temperature measurement/automatic closed-loop power control system is newly developed by our company and is mainly composed of temperature measurement system, temperature control automatic power adjustment system and data recording and storage system.

●Greatly improve the pass rate of workpieces, and continuously produce workpieces with a temperature variation range of ≤ ± 10"C: using the latest closed-loop temperature control software, by collecting the temperature of the workpieces at the outlet and calculating it in the software system. The real-time control of power ensures the relative consistency of the temperature of the workpiece at the outlet.

●Accurate temperature collection: uses thermometer, which improves the accuracy and consistency of temperature collection through non-contact infrared temperature measurement in the furnace.

●Powerful data recording and storage function: Through the internal program calculation system of the human-machine interface, the collected outlet temperature data can be analyzed and stored for curve analysis, and the data can also be exported through storage media such as U disks for multi-party inquiry.



KGPS-CL series power system:

●Series resonance technology is the leading technology in the world, and the energy conversion efficiency is more than 95%.

●Controllable output power range of 10-100%, and under any load power factor can reach more than 0.95, less harmonic pollution.

●The inverter side of the content-series power supply has low current, high voltage and low single consumption of medium frequency. The series circuit is easy to achieve accurate current detection and coil closed loop constant current control to ensure stable output power and heating temperature.
