More Advanced and Efficient Forging Equipment

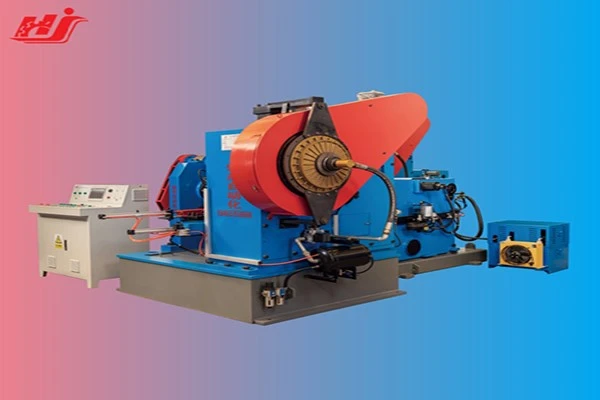

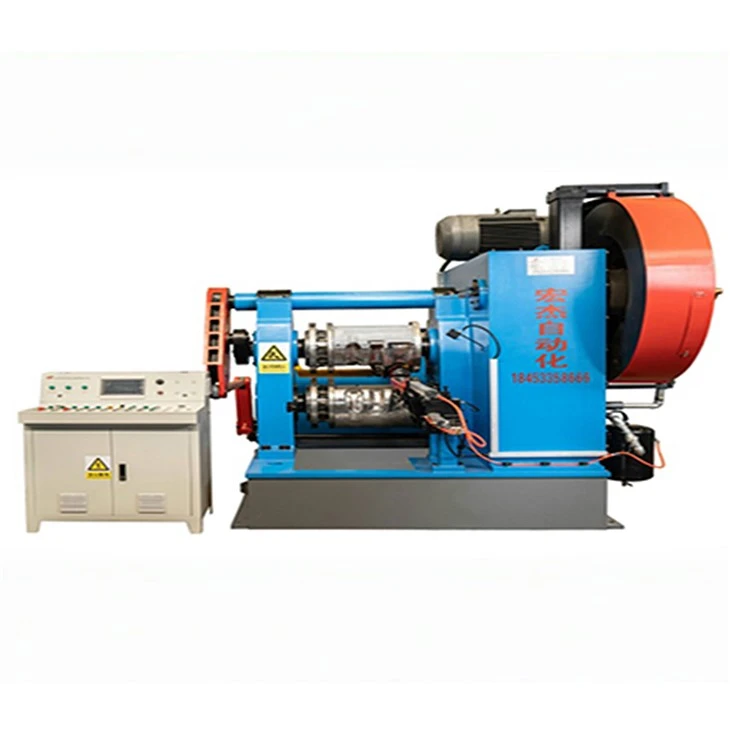

The Hongjie fully automatic roll forging machine can change the shape of materials to produce forging preforms that are closer to the finished product.
It offers higher production efficiency, lower production costs, and greater production precision, making it the most advanced means of producing preforms currently available.
Products Video
SPECIFICATION
|
Unit |
Model |
||||||||
|
ZGD-260 |
ZGD-300 |
ZGD-370 |
ZGD-460 |
ZGD-560 |
ZGD-680 |
ZGD-1000 |
ZGD-1250 |
||
|
Outer diameter of mold |
mm |
260 |
300 |
368 |
454 |
560 |
680 |
990 |
1250 |
|
Diameter of roller |
mm |
165 |
200 |
240 |
300 |
360 |
440 |
600 |
800 |
|
Max.diameter of billet |
mm |
≤40 |
≤50 |
≤65 |
≤80 |
≤110 |
≤140 |
≤170 |
≤200 |
|
Max.forging length |
mm |
≤260 |
≤350 |
≤500 |
≤600 |
≤700 |
≤800 |
≤1500 |
≤1850 |
|
RPM of roller |
r/min |
80 |
80 |
66 |
58 |
52 |
40 |
10 |
8 |
|
Main motor power |
kW |
15 |
18.5 |
22 |
30 |
55 |
132 |
250 |
315 |
·We will customize the machinery according to your needs to meet your various forging requirements.
product advantages

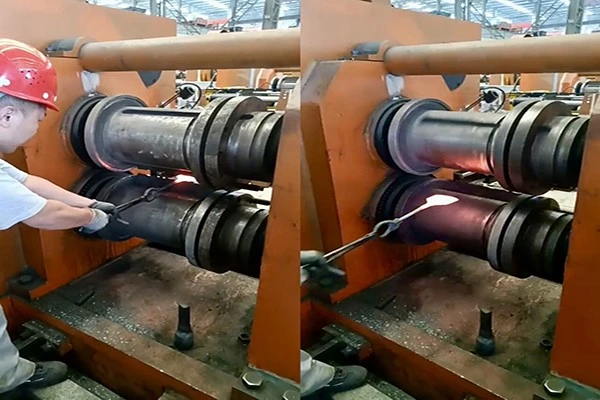

The working principle of the roll forging machine involves applying pressure to the metal material using a pair of counter-rotating rollers to induce plastic deformation. In the roll forging process, the metal billet is placed in the feeding area of the machine and rotated by the drive wheel. As the billet rotates, the two rollers move towards the center, exerting pressure on the billet and causing it to deform.
Faster
Compared to traditional forging methods, the Hongjie fully automatic roll forging machine can reach a maximum speed of 80 revolutions per minute and produce over 1,000 forging preforms per hour.
economical
The raw material utilization rate is as high as 95%, and the forging results are closer to the finished product with less flash, effectively reducing raw material waste in subsequent forging processes.
preciser
The production process is largely free from manual labor, reducing defective or damaged pieces caused by human craftsmanship, and effectively improving production precision.
our service
Recommend the appropriate machine model according to the customer's forgings and production needs.
Design the roll forging mold according to the customer's product drawings.
Customer service and technical staff are available to provide technical support and assistance at any time.
Efficient production and fast delivery.
One year warranty on equipment and necessary spare parts.
