DESCRIPTION

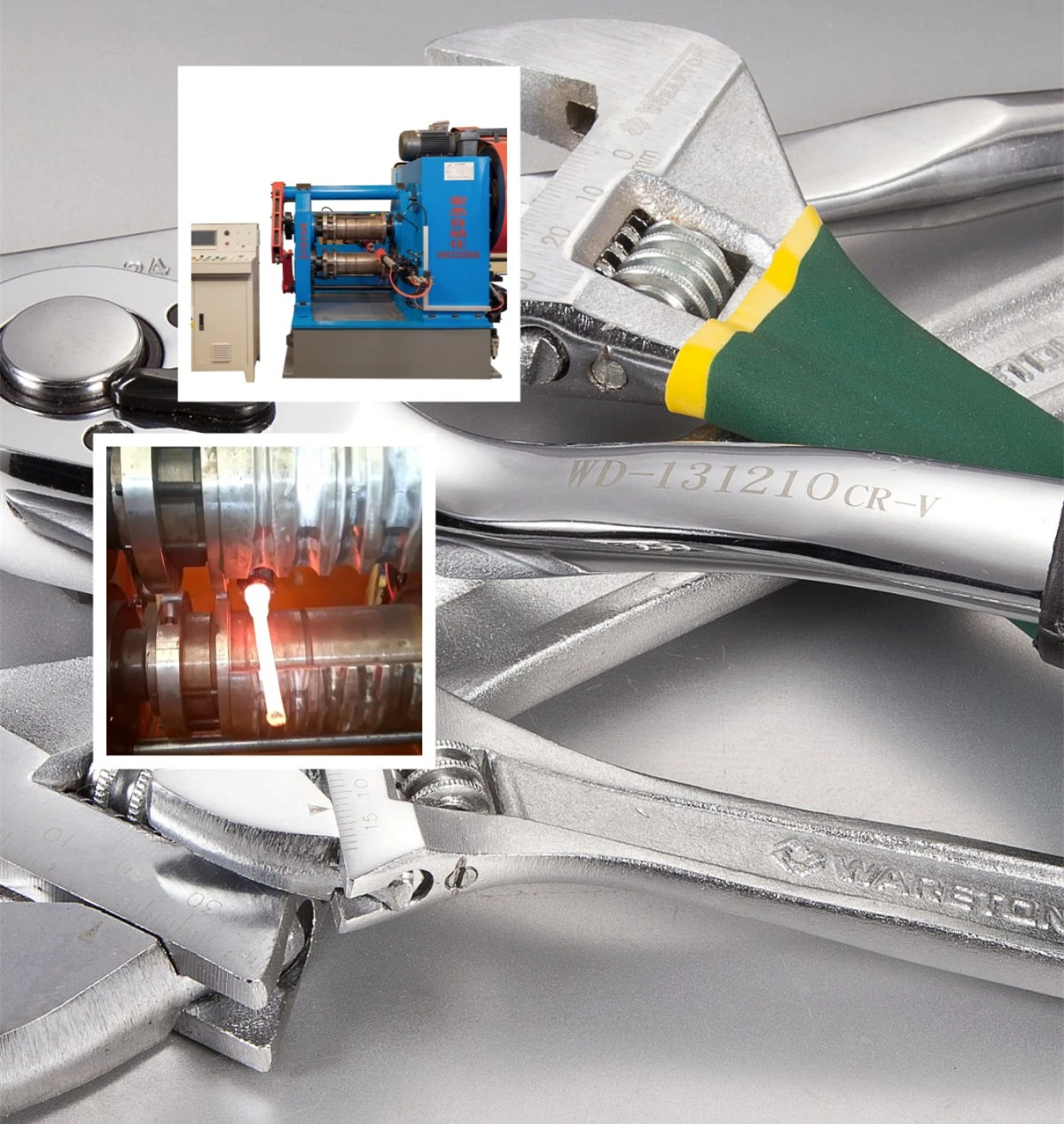

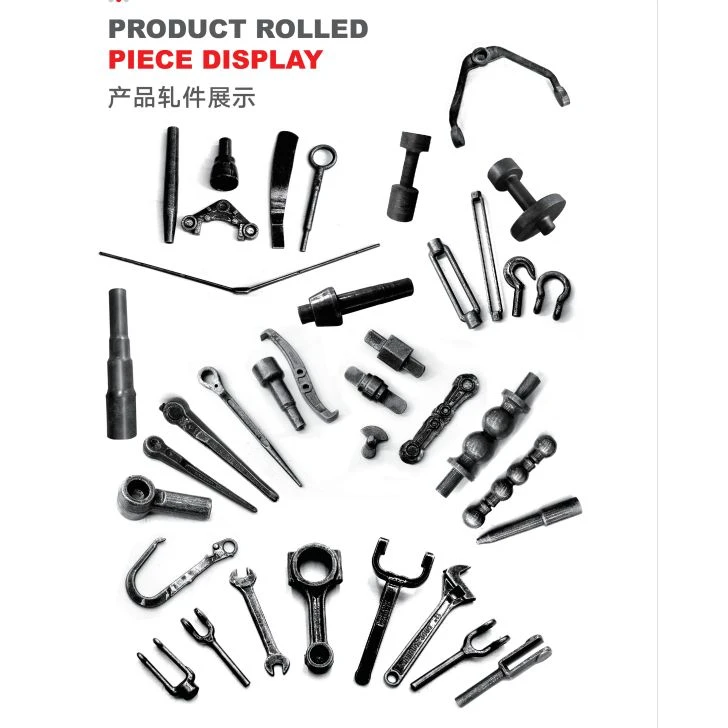

It can be preforming of the following products: single-end wrench, double-end wrench, hexagonal wrench, Needle nose pliers, curved nose pliers, diagonal nose pliers, ball peen hammer, square peen hammer, rubber hammer.
TECHNICAL SPECIFICATION
|
Unit |
Model |
||||||||
|
ZGD-260 |
ZGD-300 |
ZGD-370 |
ZGD-460 |
ZGD-560 |
ZGD-680 |
ZGD-1000 |
ZGD-1250 |
||
|
Outer diameter of roll forging die |
mm |
260 |
300 |
368 |
454 |
560 |
680 |
990 |
1250 |
|
Diameter of roller |
mm |
165 |
200 |
240 |
300 |
360 |
440 |
600 |
800 |
|
Effective width of roller/die |
mm |
320 |
390 |
500 |
550 |
610 |
900 |
1250 |
1400 |
|
RPM of roller |
r/min |
80 |
80 |
66 |
58 |
52 |
40 |
10 |
8 |
|
Length of forged part max. |
mm |
≤260 |
≤350 |
≤500 |
≤600 |
≤700 |
≤800 |
≤1500 |
≤1850 |
|
Adjustment of gap between center of rollers |
mm |
260±6 |
300±8 |
368±8 |
458±8 |
560±10 |
680±10 |
990±12.5 |
1250±15 |
|
Main motor power |
kW |
15 |
18.5 |
22 |
30 |
55 |
132 |
250 |
315 |
|
Diameter of billet |
mm |
≤40 |
≤50 |
≤65 |
≤80 |
≤110 |
≤140 |
≤170 |
≤200 |
|
Longitudinal stroke of manipulator max. |
mm |
330 |
390 |
490 |
630 |
758 |
890 |
5000 |
|
|
Horizontal stroke of manipulator max. |
mm |
330 |
400 |
520 |
560 |
620 |
910 |
1250 |
1450 |
|
Adjustment of longitudinal position |
mm |
150 |
150 |
200 |
200 |
300 |
300 |
Customized |
Customized |
|
Single horizontal distance |
mm |
60-90 |
60-90 |
70-100 |
70-130 |
80-140 |
90-160 |
Adjustable |
Adjustable |
|
Coaxiality |
mm |
≤ 0.5 |
≤ 0.5 |
≤ 0.5 |
≤ 0.6 |
≤ 0.8 |
≤ 1 |
≤1.2 |
≤ 1.5 |
*Improve production efficiency: The roll forging machine can achieve continuous and efficient automated production. Compared with traditional manual or mechanical processing methods, it can greatly improve production efficiency and shorten the production cycle.
*Guarantee product quality: The roll forging machine can control the deformation and size of metal materials with high precision, thereby producing high-precision, high-quality hardware tools and improving the service life and performance of the product.
*Reduce production costs: Roll forging machines can produce hardware tools on a large scale and continuously, thereby reducing the cost of a single product and improving economic benefits.
WHY CHOOSE HONGJIE

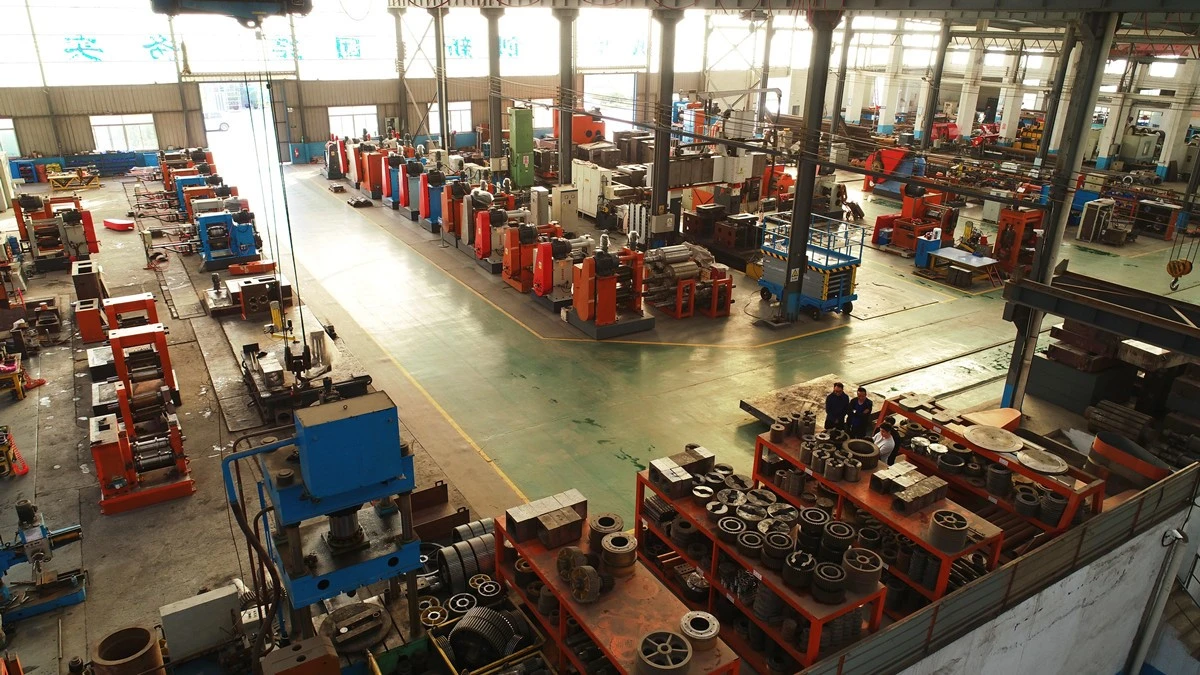

Zibo Hongjie forging industry equipment co.,ltd integrates industry, academia and research to solve problems that traditional forging equipment cannot solve. There are 7 utility model patents and 2 invention patents. Implementing the principle of "customers provide a product drawing, we make excellent equipment", in recent years we have provided customers with nearly a thousand high-quality forging and rolling production lines.
For more information, please reach to our professional consultation team for assist.
