PRODUCT VIDEO
DESCRIPTION
The use of roller forging machines for cold forging of aluminum alloys is highly economical and environmentally friendly, and fully meets the actual needs of modern industrial production. The forging process of the roll forging machine is continuous, so the production efficiency is high. Relatively speaking, traditional cold forging methods such as free forging and die forging are intermittent forgings, and their production efficiency is relatively low. In addition, since cold forging does not require heating, it helps save energy and reduce environmental pollution.
SPECIFICATION
|
Unit |
Model |
||||||||
|
ZGD-260 |
ZGD-300 |
ZGD-370 |
ZGD-460 |
ZGD-560 |
ZGD-680 |
ZGD-1000 |
ZGD-1250 |
||
|
Outer diameter of mold |
mm |
260 |
300 |
368 |
454 |
560 |
680 |
990 |
1250 |
|
Diameter of roller |
mm |
165 |
200 |
240 |
300 |
360 |
440 |
600 |
800 |
|
Max.diameter of billet |
mm |
≤40 |
≤50 |
≤65 |
≤80 |
≤110 |
≤140 |
≤170 |
≤200 |
|
Max.forging length |
mm |
≤260 |
≤350 |
≤500 |
≤600 |
≤700 |
≤800 |
≤1500 |
≤1850 |
|
RPM of roller |
r/min |
80 |
80 |
66 |
58 |
52 |
40 |
10 |
8 |
|
Main motor power |
kW |
15 |
18.5 |
22 |
30 |
55 |
132 |
250 |
315 |
Contact us for more technical specifications of our cold forging roller for aluminium alloy and get a favourable offer!
DETAILS

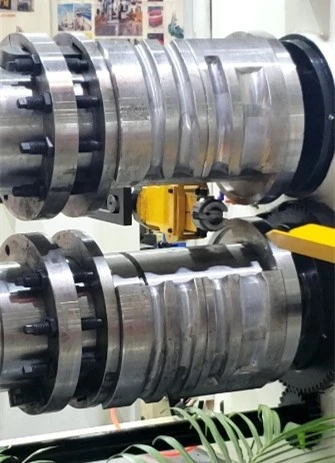

Low cost forging equipment
●Low mould cost
●Low maintenance cost
●Environmental protection and energy saving

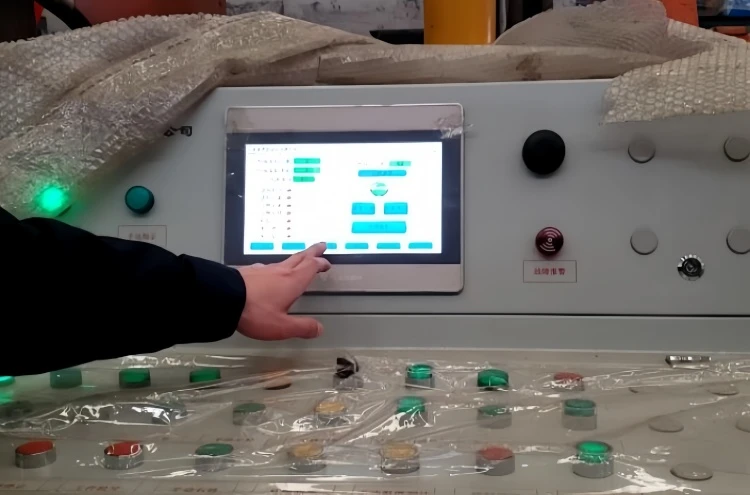

Controller operation panel
●Multilingual translation available
●Simple operation
●Smart and convenient

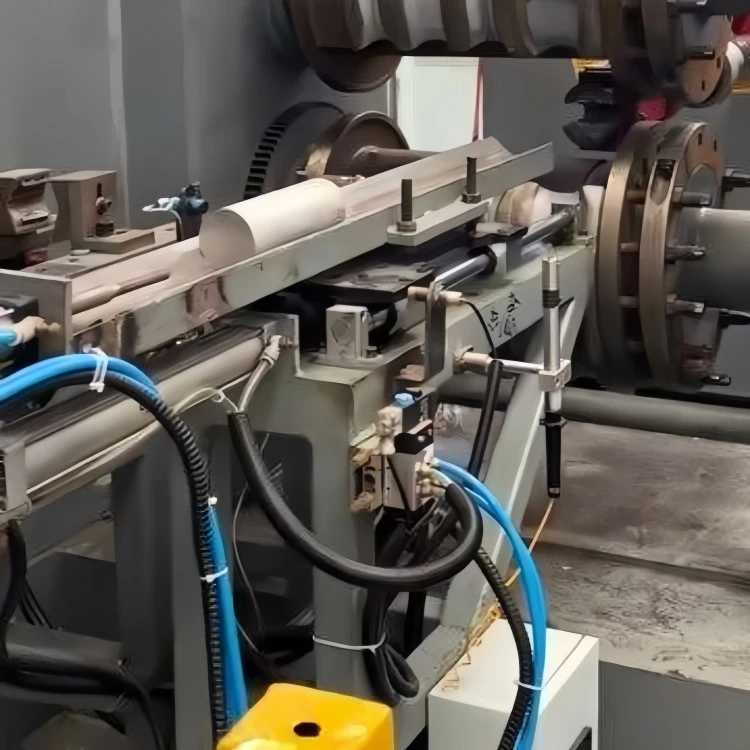

Automated forging manipulator
●Ensure stability of forgings
●Reduces raw material waste
●Improve production efficiency
Multi-application fields

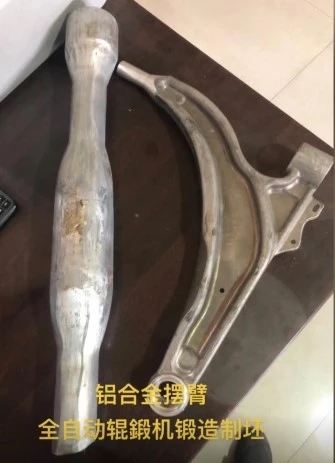

●Automobile parts forging
●Hand tools forging
●Rigging parts forging
●Power fittings
●Agricultural machinery
●Construction machinery
PRODUCT SHOW

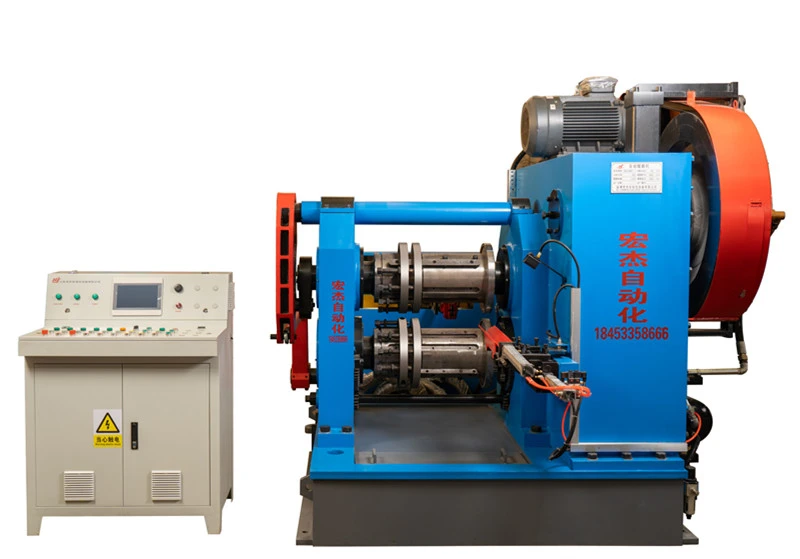

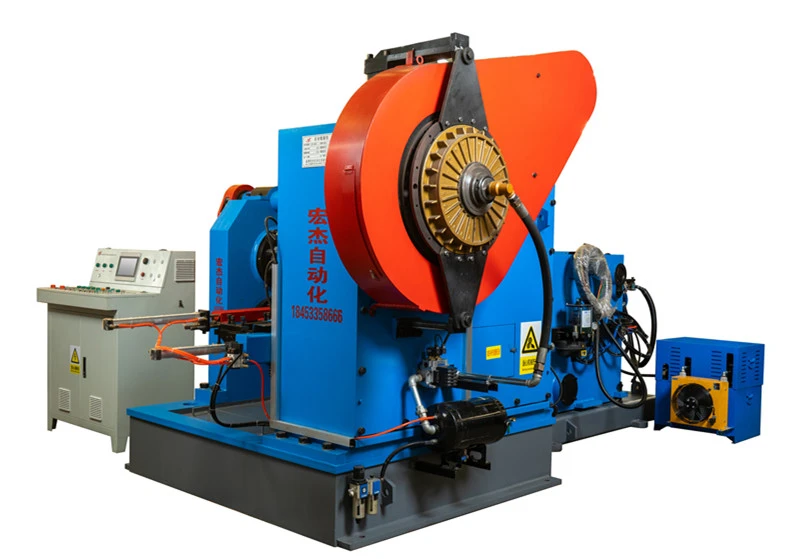

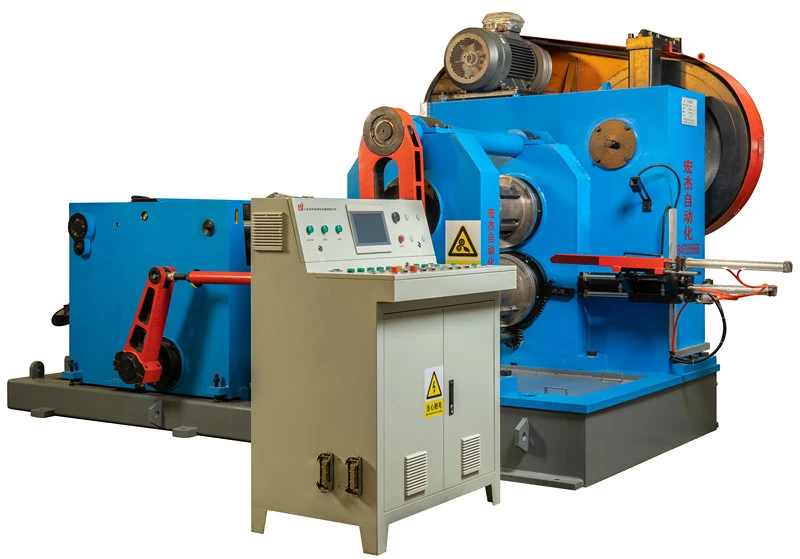

Example model: ZGD460
For more models, please contact us!

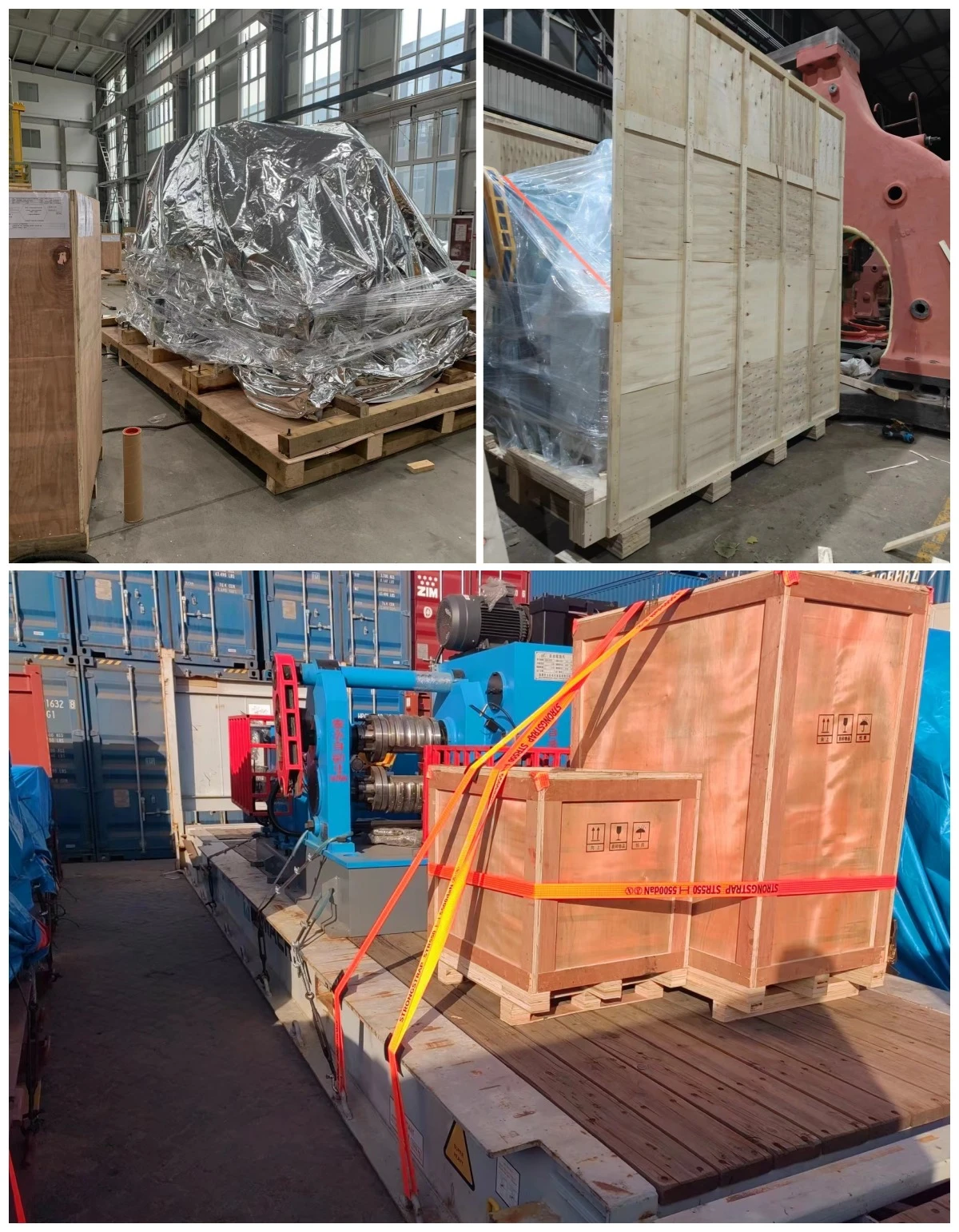

PACKAGING & SHIPPING
1. Inspection and maintenance of equipment: Before export, our equipment undergoes comprehensive inspection and maintenance to ensure that the equipment is in good operating condition.
2. Reasonable packaging method: The machine packaging material is solid, has a reasonable structure, is waterproof, and is anti-collision.
3. Clear equipment identification: including cargo name, quantity, weight, size, destination and other information.
4. Choose a suitable transportation company: Choose a transportation company with a good reputation and complete services to ensure the safe transportation of goods.
5. Going through relevant procedures: We will handle and provide the procedures and certificates required by customers, including certificate of origin, commodity inspection certificate, etc.
