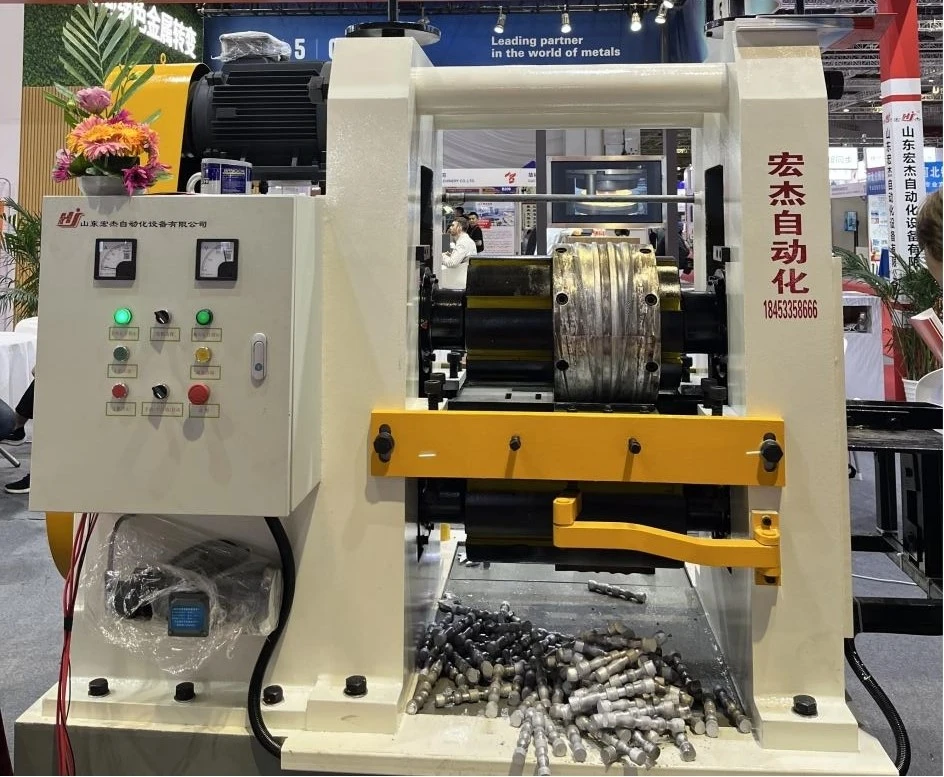

D46-CROSS WEDGE ROLLING MACHINE MODEL
√D46-300 Model
√D46-400 Model
√D46-500 Model
√D46-630 Model
√D46-800 Model
√D46-1000 Model
√D46-1200 Model
√D46-1400 Model
D46 cross wedge rolling is divided into different types according to the size of the machine. Each machine can produce parts of different sizes and types. The specific model is formulated according to the customer's requirements.

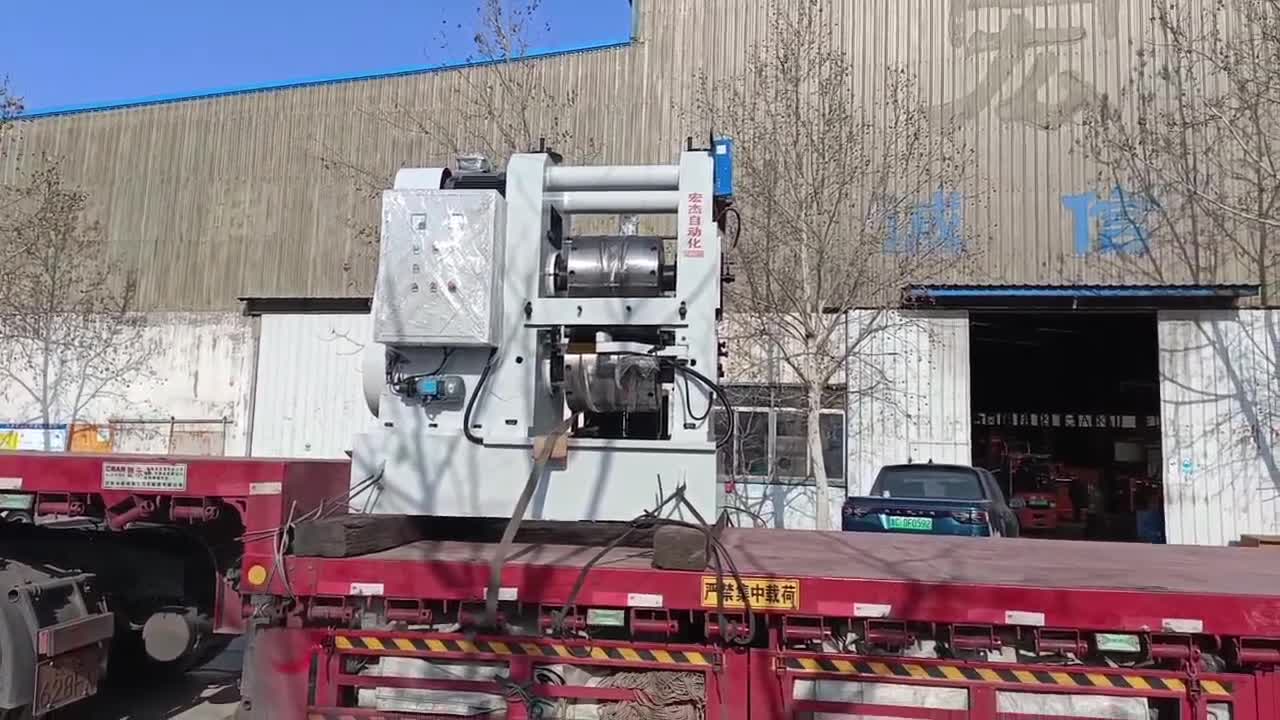

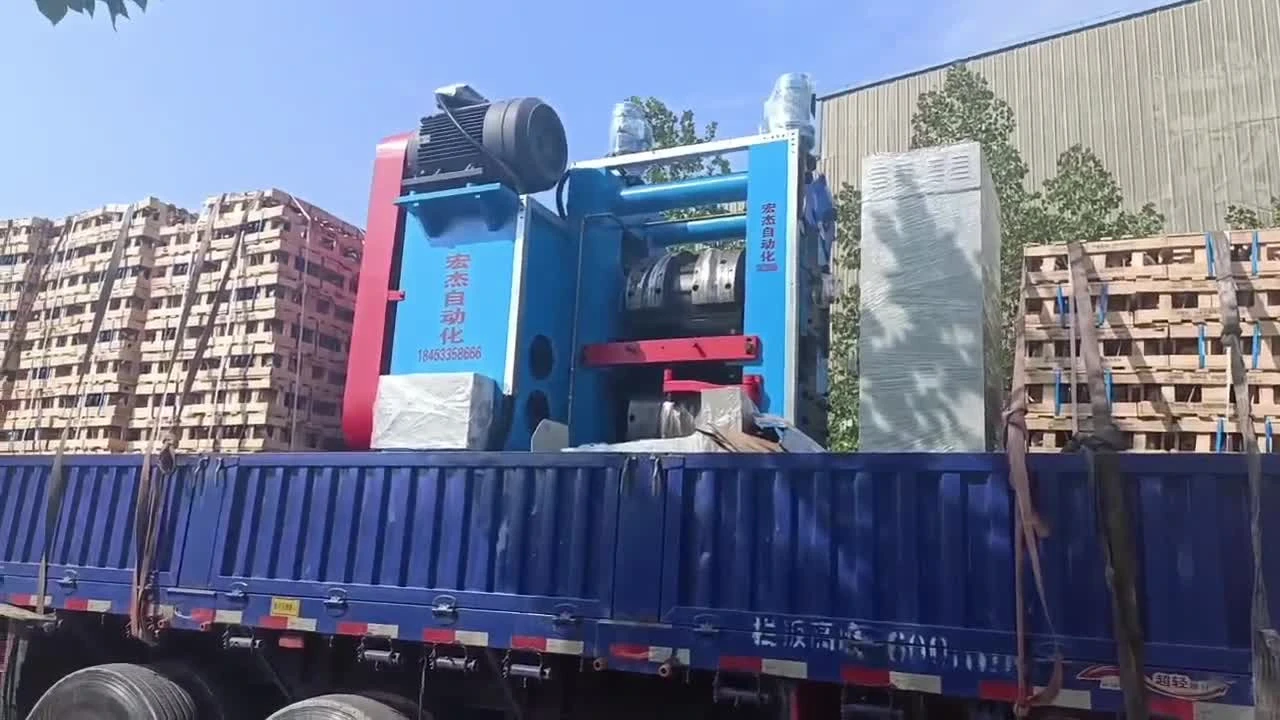

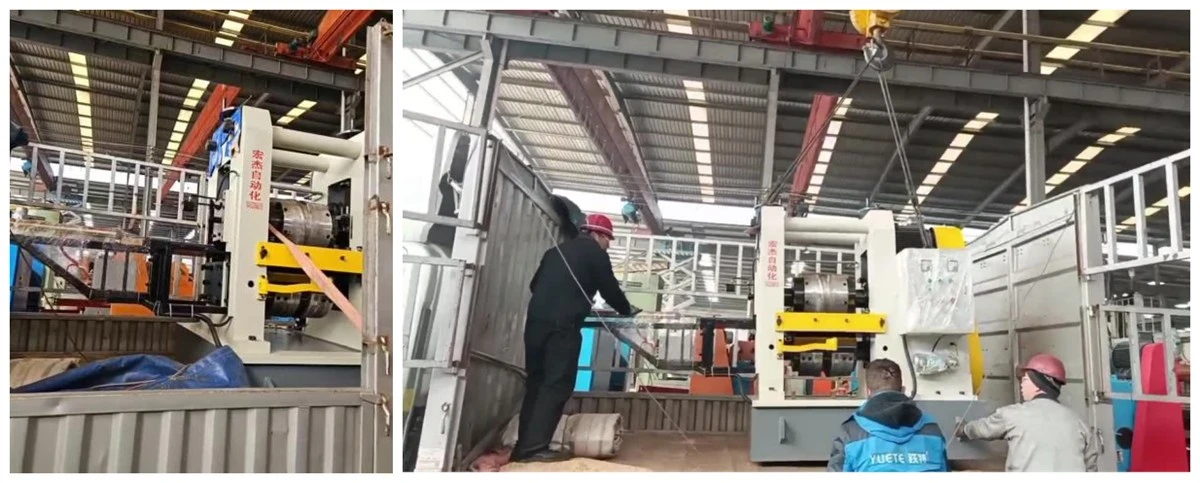

CWR MACHINE DELIVERY OVERSEAS

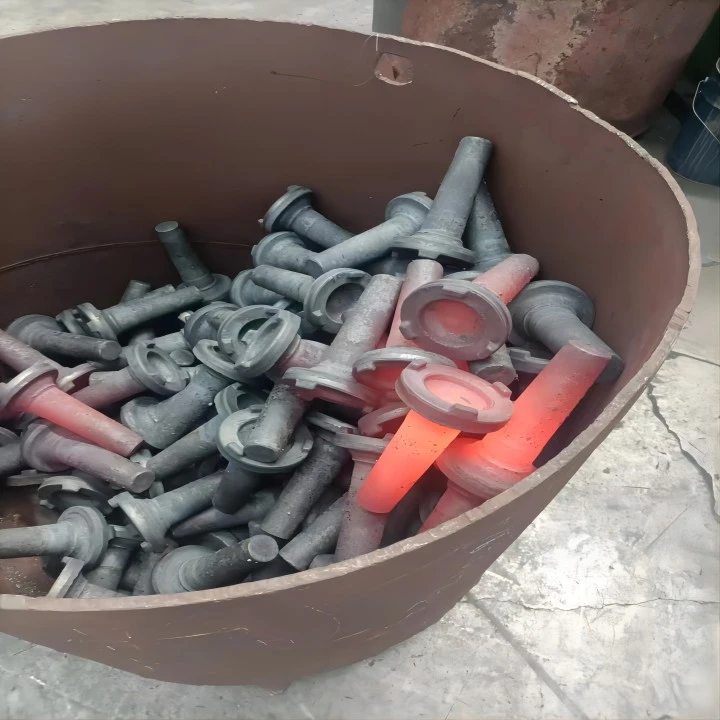

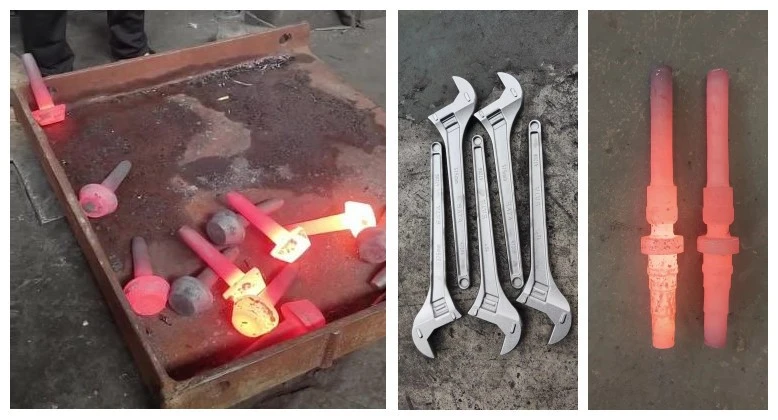

CROSS WEDGE ROLLING ADVANTAGE
√High production efficiency: D46 cross wedge rolling has extremely high production efficiency. It can roll 6 to 20 shaft parts per minute, which is much faster than traditional cutting and forging methods. This greatly improves production efficiency, shortens production cycles, and reduces production costs.
√Material savings: D46 cross wedge rolling can precisely control the volume of material distribution, providing high-precision preforms for subsequent die forging processes. This technology maximizes the use of raw materials, reduces waste, and lowers production costs.
√Strong adaptability: D46 cross wedge rolling is suitable for various solid or hollow stepped shaft parts, including cylindrical, conical, spherical shapes, as well as single-step, multi-step, and vertical steps. The application scope of this technology is very broad, allowing the production of various shaped shaft parts according to different needs.
√Environmental friendliness: D46 cross wedge rolling is a clean processing method that can reduce waste and exhaust emissions generated during cutting and forging processes. It also lowers energy consumption and noise pollution. This environmentally friendly processing method aligns with sustainable development requirements and is conducive to building a resource-saving and environmentally friendly society.
√High precision and quality: D46 cross wedge rolling shaft parts have high precision and excellent quality. Due to the continuous local deformation of materials during rolling, the surface roughness of the parts is low, the precision is high, and it can meet the development needs of high-quality and large-scale production.

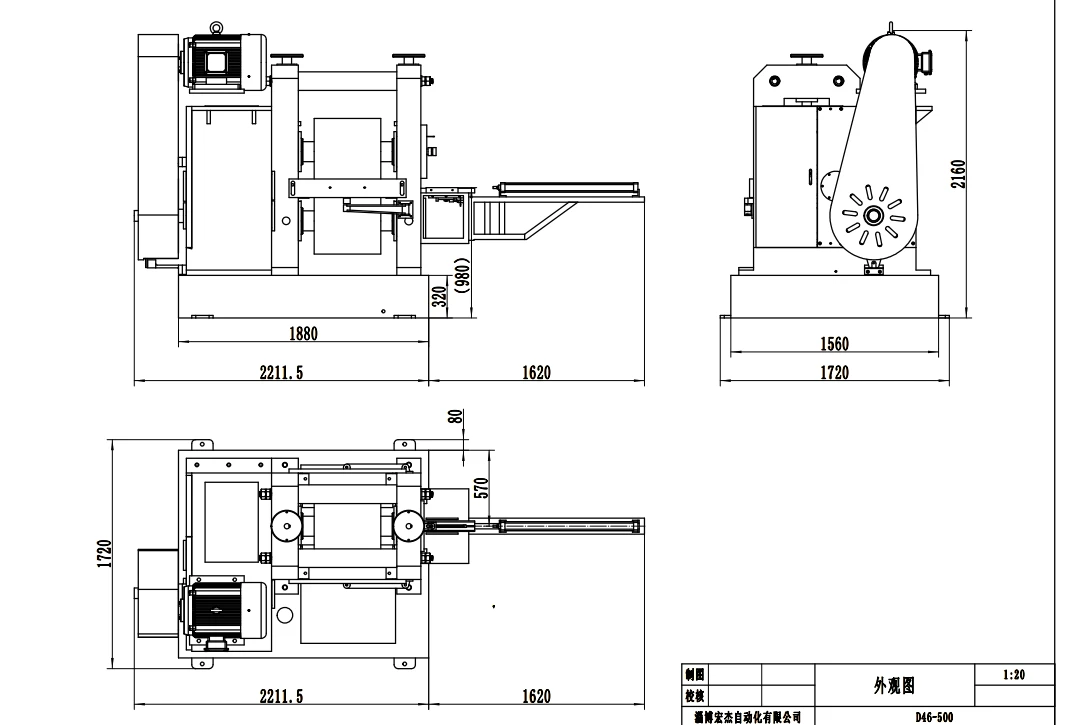

SPECIFICATIONS OF D46-CROSS WEDGE ROLLING MACHINE:
|
|
Unit |
Model |
||||||||
|
D46-300 |
D46-400 |
D46-500 |
D46-630 |
D46-800 |
D46-1000 |
D46-1200 |
D46-1400 |
D46-1600 |
||
|
Outside diameter of die |
mm |
320 |
400 |
500 |
630 |
800 |
1000 |
1200 |
1440 |
1650 |
|
Diameter of billet max |
mm |
35 |
45 |
55 |
65 |
85 |
110 |
130 |
150 |
180 |
|
Length of rolled part |
mm |
260 |
300 |
400 |
500 |
600 |
800 |
950 |
1100 |
1200 |
|
Diameter of roller |
mm |
240 |
320 |
400 |
500 |
640 |
800 |
1000 |
1200 |
1350 |
|
RPM of roller |
r/min |
28 |
25 |
22 |
12 |
8.5 |
6 |
4.5 |
3.5 |
2.5 |
|
Main motor power |
kW |
15 |
22 |
30 |
37 |
55 |
110 |
132 |
185 |
250 |
|
Width of die max. |
mm |
≤ 400 |
≤ 500 |
≤ 500 |
≤ 600 |
≤ 900 |
≤ 1000 |
≤1200 |
≤1400 |
≤1600 |
|
Adjustment of gap of rollers' center |
mm |
±15 |
±15 |
±25 |
±30 |
±35 |
±50 |
±55 |
±75 |
±80 |
|
Axial adjustment of roller |
mm |
±8 |
±10 |
±10 |
±10 |
±10 |
±10 |
±10 |
±10 |
±10 |
|
Up and down adjustment of guide plate |
mm |
±15 |
±15 |
±20 |
±20 |
±25 |
±35 |
±35 |
±35 |
±40 |
|
Back and forth adjustment of guide plate |
mm |
±15 |
±20 |
±20 |
±25 |
±30 |
±35 |
±35 |
±40 |
±40 |
|
Coaxiality |
mm |
≤ 0.5 |
≤ 0.5 |
≤ 0.5 |
≤ 0.6 |
≤ 0.8 |
≤ 1 |
≤1.2 |
≤ 1.5 |
≤1.5 |
A corner of the cross wedge rolling manufacturer's factory
