WORKING PRINCIPLE AND CHARACTERISTICS OF CROSS WEDGE ROLLING:

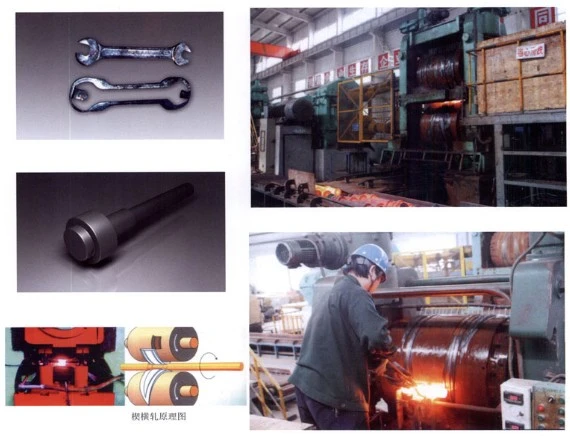

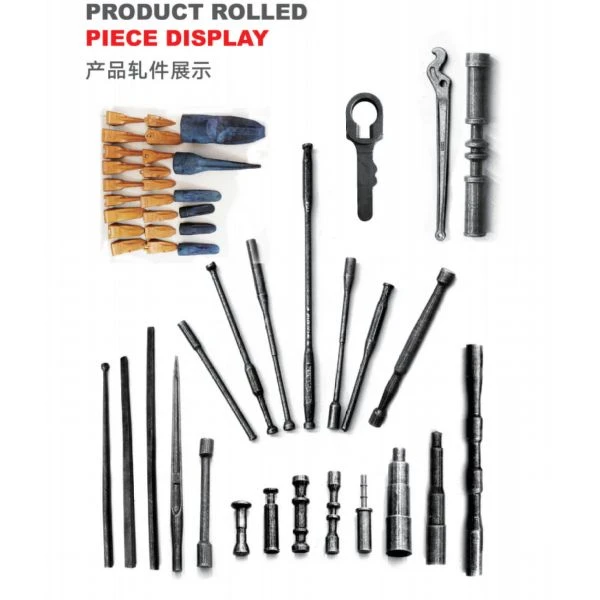

The basic principle of the cross wedge rolling process is to feed the heated raw material into the middle of two co-rotating dies with wedge protrusions. Driven by the dies, the bar stock moves in the opposite direction to the dies. Rotary motion, while the material undergoes radial compression deformation and axial extension deformation, thereby forming stepped shaft parts.
CWR-ECOFRIENDLY MACHINE:
√Green and environmentally friendly production process: Compared with casting, forging and machining, CWR process is quiet and does not require harmful materials to assist production.
√Improve resource utilization: cross wedge rolling adopts continuous processing, which can achieve efficient and mass production, thereby reducing the waste of raw materials and saving energy.
√Reduce energy consumption: cross wedge rolling adopts advanced transmission system and control system, which can achieve precise energy control, thereby reducing energy waste.
√Reduce environmental pollution: cross wedge rolling generates less waste and waste gas during the production process, and is easy to process and recycle, thereby reducing environmental pollution.
√Promote sustainable development: The use of cross wedge rolling mill can promote the sustainable development of enterprises and improve their environmental awareness and image.
In short, the environmental performance of the cross wedge rolling mill has been widely recognized, and it is one of the important means for enterprises to achieve green production.
SPECIFICATIONS:
|
Unit |
Model |
||||||||||
|
D46-300 |
D46-400 |
D46-500 |
D46-630 |
D46-800 |
D46-1000 |
D46-1200 |
D46-1400 |
D46-1600 |
|||
|
Outside diameter of die |
mm |
320 |
400 |
500 |
630 |
800 |
1000 |
1200 |
1440 |
1650 |
|
|
Diameter of billet max |
mm |
35 |
45 |
55 |
65 |
85 |
110 |
130 |
150 |
180 |
|
|
Length of rolled part |
mm |
260 |
300 |
400 |
500 |
600 |
800 |
950 |
1100 |
1200 |
|
|
Diameter of roller |
mm |
240 |
320 |
400 |
500 |
640 |
800 |
1000 |
1200 |
1350 |
|
|
RPM of roller |
r/min |
28 |
25 |
22 |
12 |
8.5 |
6 |
4.5 |
3.5 |
2.5 |
|
|
Main motor power |
kW |
15 |
22 |
30 |
37 |
55 |
110 |
132 |
185 |
250 |
|
|
Up and down adjustment of guide plate |
mm |
±15 |
±15 |
±20 |
±20 |
±25 |
±35 |
±35 |
±35 |
±40 |
|
|
Back and forth adjustment of guide plate |
mm |
±15 |
±20 |
±20 |
±25 |
±30 |
±35 |
±35 |
±40 |
±40 |
|
|
Normal rolling temperature |
℃ |
1050-1150 |
|||||||||
