HONGJIE BRAND CROSS WEDGE ROLLING MACHINE
Zibo Hongjie Forging Industry Equipment Co., Ltd., with 33 years of experience in manufacturing wedge rolling machines, is the proud owner of the renowned "Hongjie" brand.
The Hongjie wedge rolling machine has won widespread recognition for its excellent quality and good reputation in the global market. Our customers are all over the world, including many well-known automakers, parts suppliers, and large industrial companies. We are committed to establishing long-term stable cooperative relationships with global customers to jointly promote the prosperity and development of the industry.
CWR MACHINE FUNCTIONS
Cross wedge rolling is a steel rolling technology that was invented in 1961 and is particularly suitable for rolling rotary bodies with variable cross-sections. This technology uses two rollers with wedge-shaped grooves to rotate in the same direction along the direction of wedge advancement, and gradually roll the blank into a rotary body with variable cross-section.
The function of wedge rolling machines is to provide a new type of forging equipment with the following advantages:
√ Improve production efficiency and reduce production costs.
√ Produce high-quality shaft parts
√ Produce shaft parts with various complex shapes, such as stepped shafts, tapered
shafts, spherical shafts, etc., and has wide applicability.
√ Cross wedge rolling technology can also save a large amount of raw materials, reduce resource waste
CROSS WEDGE ROLLING MECHANICAL PARTS
Cross wedge rolling consists of several parts: main machine/electrical cabinet/operating floor/feeder. The weight of each model is different. For more information, please contact zibo hongjie forging industry equipment co. ,ltd
|
COMMODITY |
MODEL NO. |
DESCRIPTION |
QUANTITY(SET) |
|
Cross Wedge Rolling Mill |
D46-series |
main machine |
1 |
|
electrical cabinet |
1 |
||
|
operating floor |
1 |
||
|
feeder |
1 |

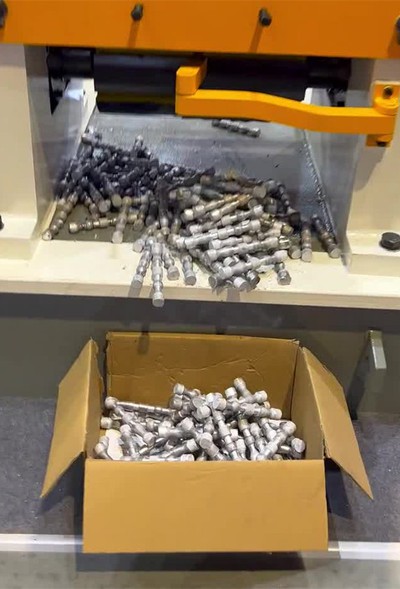

INDUSTRIAL TOOLS FORGINGS LIST DISPLAY
WHY CHOOSE HONGJIE BRAND CWR MILL MACHINE?
CWR rolling technology is an advanced manufacturing technology for shaft parts, which has the advantages of high efficiency, saving raw materials, strong applicability, environmental protection and energy saving. With its deep research strength market insight, Hongjie Company has successfully pushed this technology to a new height. The shaft parts they produce are of high precision and stable quality, and are widely used in the fields of automobiles, agricultural machinery, engineering machinery, hardware tools, etc.
SPECIFICATIONS OF D46-CROSS WEDGE ROLLING MACHINE:
|
Unit |
Model |
|||||||||
|
D46-300 |
D46-400 |
D46-500 |
D46-630 |
D46-800 |
D46-1000 |
D46-1200 |
D46-1400 |
D46-1600 |
||
|
Outside diameter of die |
mm |
320 |
400 |
500 |
630 |
800 |
1000 |
1200 |
1440 |
1650 |
|
Diameter of billet max |
mm |
35 |
45 |
55 |
65 |
85 |
110 |
130 |
150 |
180 |
|
Length of rolled part |
mm |
260 |
300 |
400 |
500 |
600 |
800 |
950 |
1100 |
1200 |
|
Diameter of roller |
mm |
240 |
320 |
400 |
500 |
640 |
800 |
1000 |
1200 |
1350 |
|
RPM of roller |
r/min |
28 |
25 |
22 |
12 |
8.5 |
6 |
4.5 |
3.5 |
2.5 |
|
Main motor power |
kW |
15 |
22 |
30 |
37 |
55 |
110 |
132 |
185 |
250 |
|
Width of die max. |
mm |
≤ 400 |
≤ 500 |
≤ 500 |
≤ 600 |
≤ 900 |
≤ 1000 |
≤1200 |
≤1400 |
≤1600 |
|
Adjustment of gap of rollers' center |
mm |
±15 |
±15 |
±25 |
±30 |
±35 |
±50 |
±55 |
±75 |
±80 |
|
Axial adjustment of roller |
mm |
±8 |
±10 |
±10 |
±10 |
±10 |
±10 |
±10 |
±10 |
±10 |
|
Up and down adjustment of guide plate |
mm |
±15 |
±15 |
±20 |
±20 |
±25 |
±35 |
±35 |
±35 |
±40 |
|
Back and forth adjustment of guide plate |
mm |
±15 |
±20 |
±20 |
±25 |
±30 |
±35 |
±35 |
±40 |
±40 |
|
Coaxiality |
mm |
≤ 0.5 |
≤ 0.5 |
≤ 0.5 |
≤ 0.6 |
≤ 0.8 |
≤ 1 |
≤1.2 |
≤ 1.5 |
≤1.5 |
