DESCRIPTION

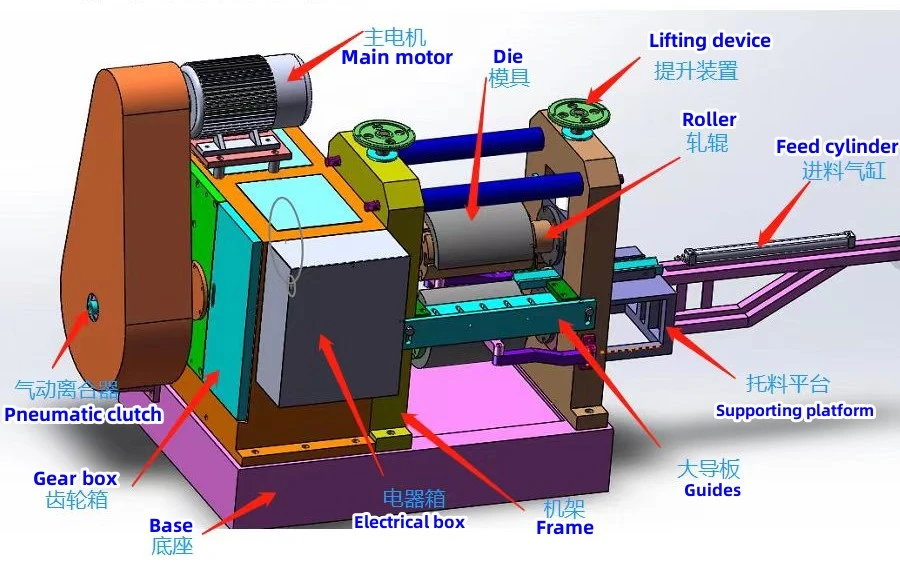

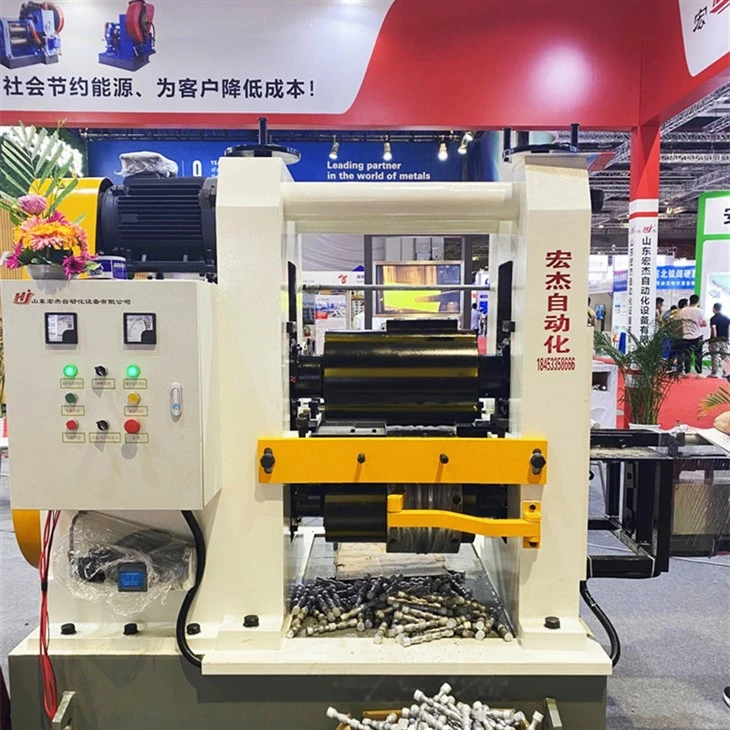

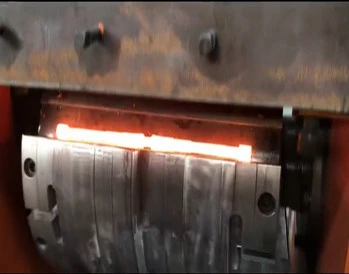

D46 high efficiency precision cross wedge machine refers to the continuous local deformation of the cylindrical billet between the two rolls of the die, and the rolled work piece is consistent with the shape of the bottom groove of the die. Type module is installed on the roller, driven by the roller along the same direction of rotation, driving the circular billet to rotate in the opposite direction, the billet in the wedge radial compression, deformation, so that the rolled part and the bottom of the mold groove shape is the same.
TECHNICAL SPECIFICATION
|
|
Unit |
Model |
||||||||
|
D46-300 |
D46-400 |
D46-500 |
D46-630 |
D46-800 |
D46-1000 |
D46-1200 |
D46-1400 |
D46-1600 |
||
|
Outside diameter of die |
mm |
320 |
400 |
500 |
630 |
800 |
1000 |
1200 |
1440 |
1650 |
|
Diameter of billet max |
mm |
35 |
45 |
55 |
65 |
85 |
110 |
130 |
150 |
180 |
|
Length of rolled part |
mm |
260 |
300 |
400 |
500 |
600 |
800 |
950 |
1100 |
1200 |
|
Diameter of roller |
mm |
240 |
320 |
400 |
500 |
640 |
800 |
1000 |
1200 |
1350 |
|
RPM of roller |
r/min |
28 |
25 |
22 |
12 |
8.5 |
6 |
4.5 |
3.5 |
2.5 |
|
Main motor power |
kW |
15 |
22 |
30 |
37 |
55 |
110 |
132 |
185 |
250 |
|
Width of die max. |
mm |
≤ 400 |
≤ 500 |
≤ 500 |
≤ 600 |
≤ 900 |
≤ 1000 |
≤1200 |
≤1400 |
≤1600 |
|
Adjustment of gap of rollers' center |
mm |
±15 |
±15 |
±25 |
±30 |
±35 |
±50 |
±55 |
±75 |
±80 |
|
Axial adjustment of roller |
mm |
±8 |
±10 |
±10 |
±10 |
±10 |
±10 |
±10 |
±10 |
±10 |
|
Up and down adjustment of guide plate |
mm |
±15 |
±15 |
±20 |
±20 |
±25 |
±35 |
±35 |
±35 |
±40 |
|
Back and forth adjustment of guide plate |
mm |
±15 |
±20 |
±20 |
±25 |
±30 |
±35 |
±35 |
±40 |
±40 |
|
Coaxiality |
mm |
≤ 0.5 |
≤ 0.5 |
≤ 0.5 |
≤ 0.6 |
≤ 0.8 |
≤ 1 |
≤1.2 |
≤ 1.5 |
≤1.5 |
WHY CHOOSE THIS MACHINE
FEATURE
*Cross wedge rolling machines offer high precision in shaping metal work pieces, ensuring accurate and consistent results.

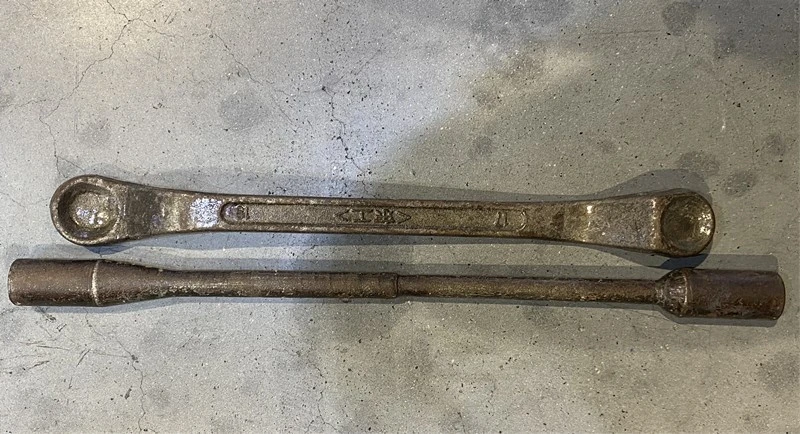

*High production efficiency: usually 2-5times of other process.According to the different type of wrenches can be designed out of double pieces.
*Efficient material utilization: They optimize material usage by minimizing waste during the forming process, contributing to cost-effectiveness and sustainability.
ADVANTAGE
*High production rates: These machines are capable of achieving high production rates, making them suitable for mass production of components.
*Material Savings:CWR machine optimizes material usage by minimizing waste during the forming process, resulting in cost savings and improved material efficiency.
*Automation Compatibility: Some modern cross wedge rolling machines can be integrated with automation systems, increasing efficiency and reducing the need for manual labor in the production process.
BENEFIT
*Saving raw materials allows companies to save cost.

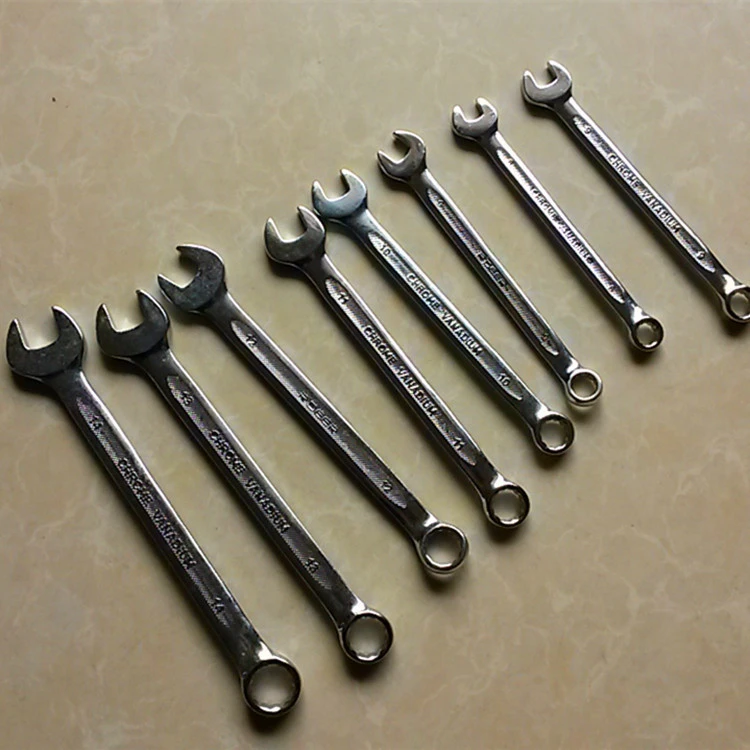

*Improve production efficiency: The automated production line uses automatic forging equipment to complete the production process, which can greatly reduce labor costs and can produce continuously wrenches manufacturing day.
*Ensure product quality and consistency: The equipment of the automated production line has high precision and can accurately execute the production process and avoid errors caused by human operator.
COMPANY CAPABILITIES

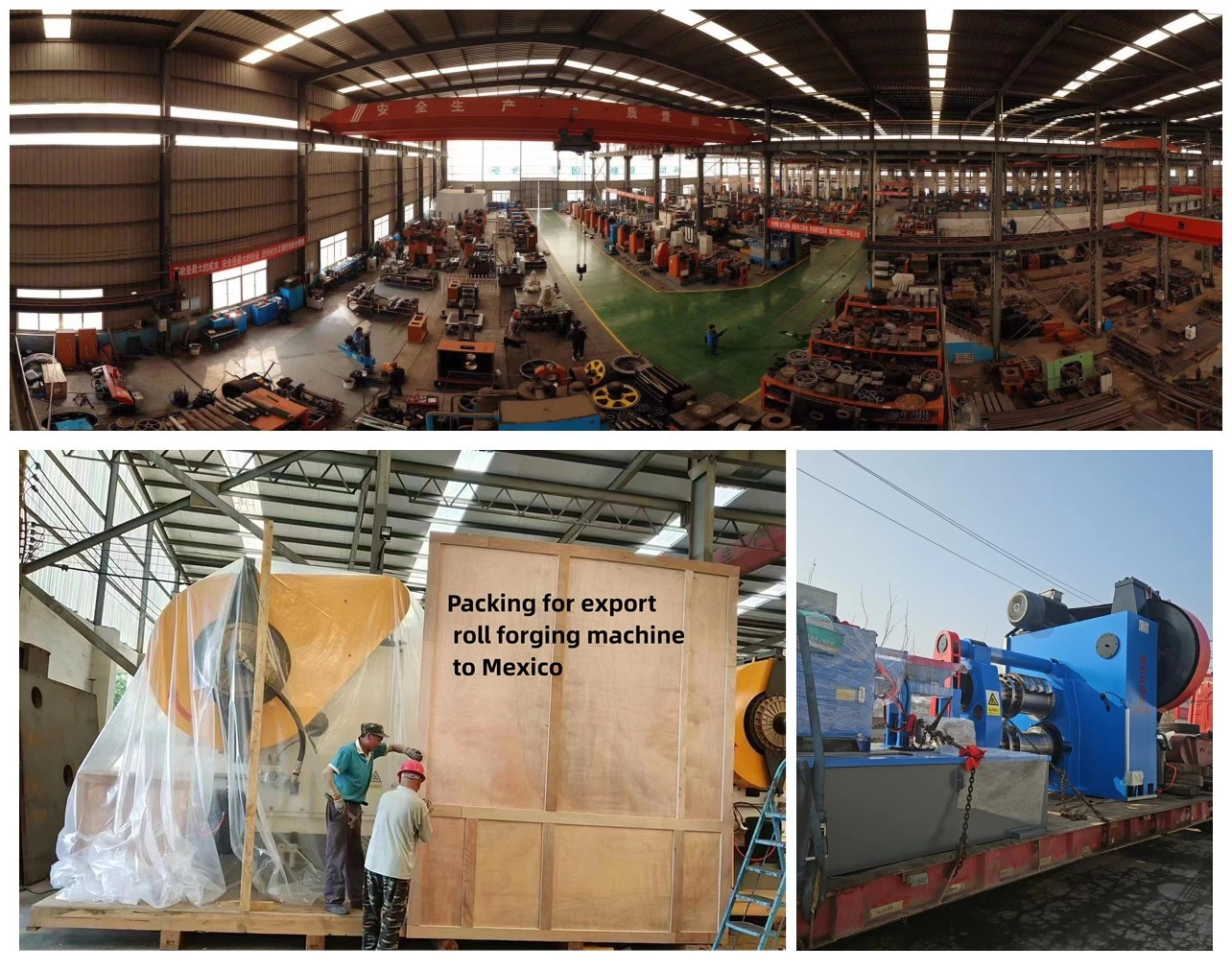

Zibo hongjie forging industry equipment co.,ltd has a total of 18 national invention and utility model patents. By adopting domestic leading forging technology and management system. So far it has provided more than 1000 sets of high- efficiency forging equipment for the world, which are widely used in auto parts, hardware tools, power fittings, rigging, construction machinery and other industry.
