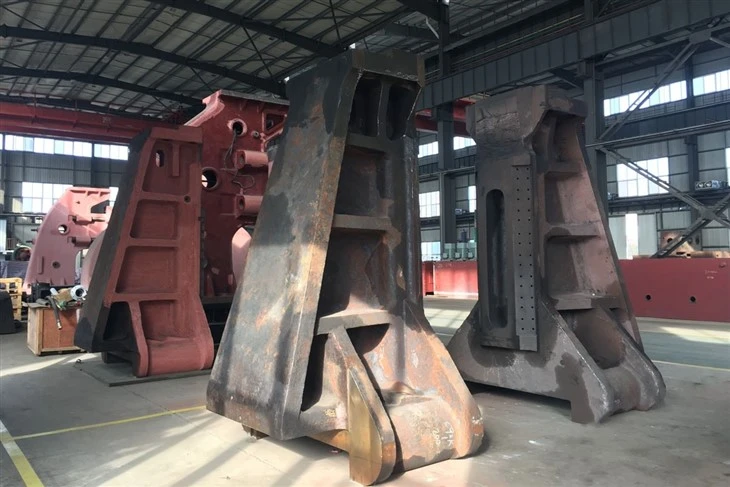

C86Y Series Hydraulic Forging Hammer
Introduce
The forging and lifting of C86Y series are both driven by hydraulic oil, the lower chamber of cylinder under the piston is always filled with high pressure oil, the forging and lifting are realized by controlling the oil pressure filled in the top chamber of piston.The fully hydraulic closed die forging hammer hitting is powerful and faster, forging dies never sticking, less malfunction, the ram can hang up at any position. It suits to produce all kinds of closed die forgings.
C86Y Series Machine Attributes
Die Type :Closed die
Support CNC :No

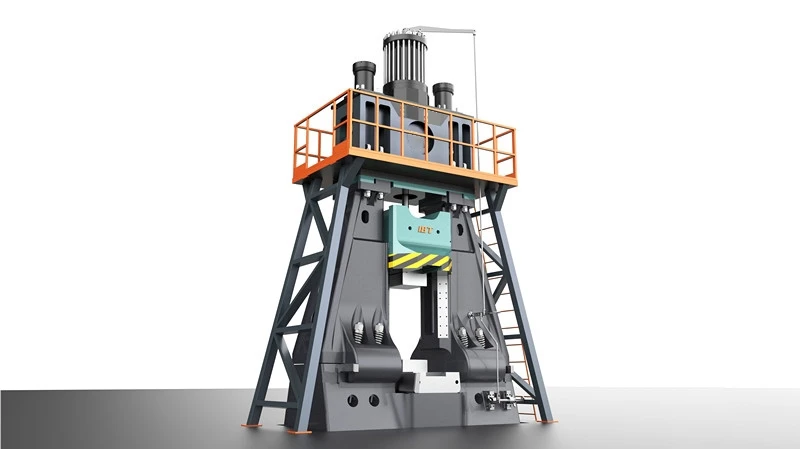

16 ton hydraulic forging hammer
MAIN PARAMETER
| Item | Unit | C86Y-25(1T) | C86Y-50(2T) | C86Y-75(3T) | C86Y-125(5T) | C86Y-200(8T) | C86Y-250(10T) | C86Y-400(16T) | C86Y-450(18T) |
| Hit energy | KJ | ≥25 | ≥50 | ≥75 | ≥125 | ≥200 | ≥250 | ≥400 | ≥450 |
| Ram weight | Kg | 1000 | 2000 | 3000 | 5000 | 8000 | 10000 | 16000 | 18000 |
| Max stroke | mm | 1000 | 1200 | 1250 | 1300 | 1350 | 1400 | 1500 | 1500 |
| Hit frequency | min⁻¹ | 55-70 | 55-70 | 55-70 | 55-65 | 50-60 | 50-60 | 50-55 | 45-50 |
| Motor power | Kw | 75×1 | 75×2 | 75×3 | 75×4 | 75×5 | 75×6 | 75×8 | 75×10 |
|
Min height of close die (without dovetail) |
mm | 220 | 260 | 350 | 400 | 430 | 450 | 500 | 500 |
|
Ram/sow block front to back length |
mm | 550/700 | 630/900 | 800/1000 | 950/1100 | 1100/1260 | 1200/1400 | 1500/1600 | 2000/2200 |
| Distance between guides | mm | 540 | 600 | 700 | 740 | 900 | 1000 | 1200 | 1200 |
| Outside size(L×W×H) | mm |
2400×1400 ×7000 |
3000×1700 ×7500 |
3200×1800 ×8000 |
3700×2100 ×8200 |
4300×2700 ×8800 |
4400×2700 ×9000 |
4500×2600 ×9800 |
4500×2800 ×10000 |
The C86Y hydraulic forging hammer operates in a traditional manual mode, making it easy to use and operate. The equipment incorporates multiple safety measures and features a full hydraulic control system with patented design. It boasts simple operation, low labor intensity, and includes emergency leak-proof and anti-hammer rod breaking devices to ensure production safety. With a long design lifespan and high cost-performance ratio, it's suitable for forging various types of parts in small batches.

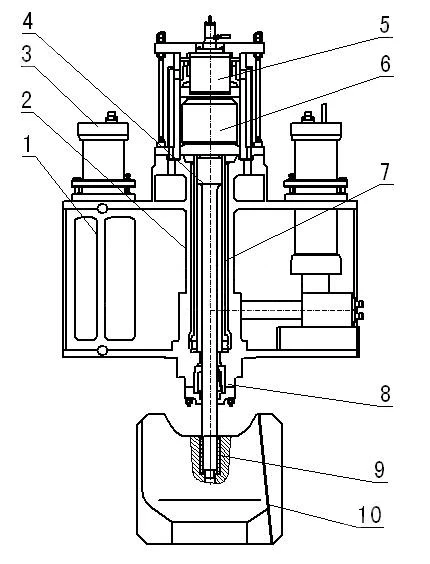

1- Connecting Rod
2- Main Cylinder
3- Accumulator
4- Hammer Rod
5- Main Control Valve
6- Buffer Cylinder
7- Cylinder Liner
8- Lower Seal
9- Cone Sleeve
10- Hammer Head

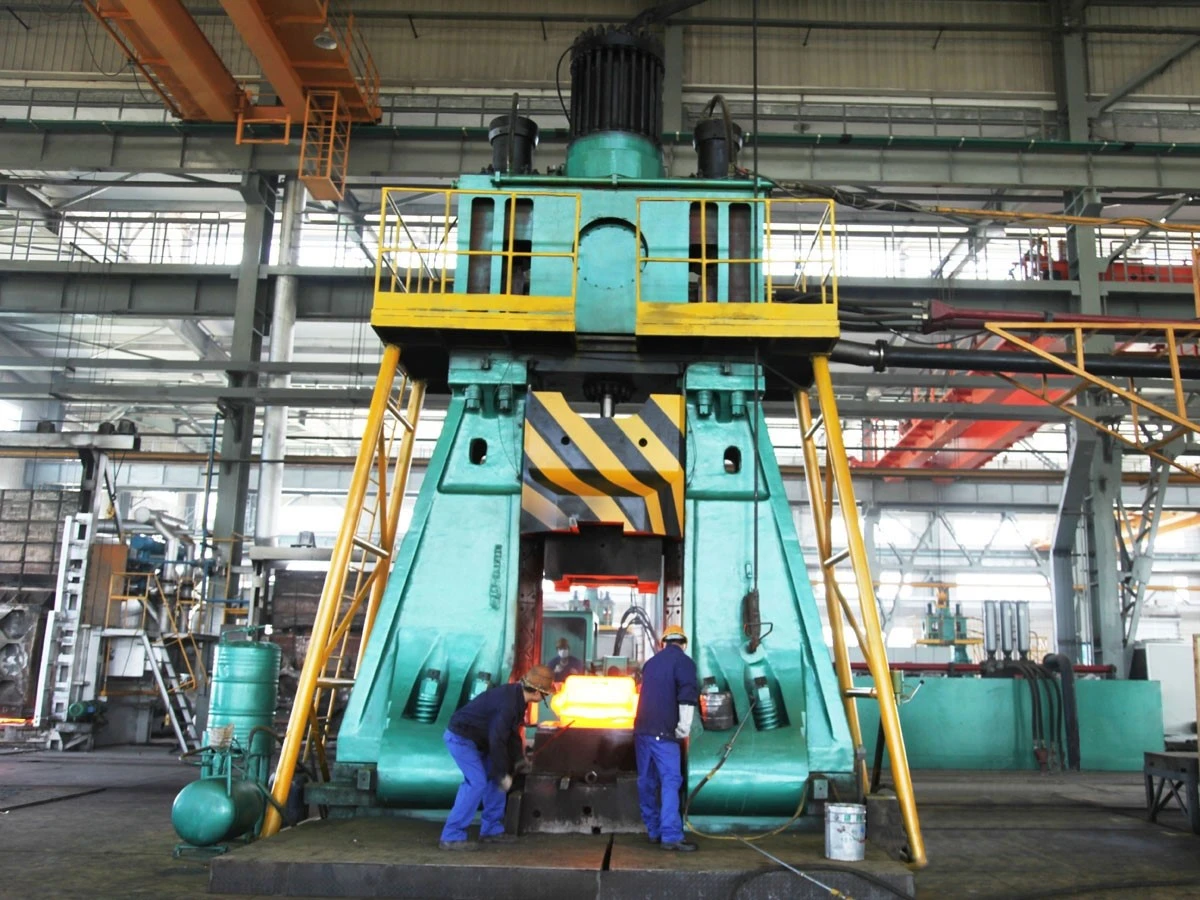

20 ton hydraulic forging hammer
Leave your contact information on the right, email service@hjforging.com or add WhatsApp +86 18560976009 to get more information about forging machines.
