J58K Series Electric Screw Press Machine
Introduce
The J58K series electric screw press is a versatile forging machine that combines the features of press and forging hammer. It boasts a simple design, a compact transmission system, user-friendly operation, and runs safely with minimal maintenance and foundation requirements. This press is ideal for various processes like closed die forging, finishing, coining, embossing, and leveling. It offers precise strike energy settings, a sturdy frame, excellent guiding capability, and robust resistance to uneven loads. Suitable for multi-die forging, this electric screw press is both energy-efficient and environmentally friendly.
J58K Series Machine Attributes
Die Type :Closed die
Support CNC :Yes

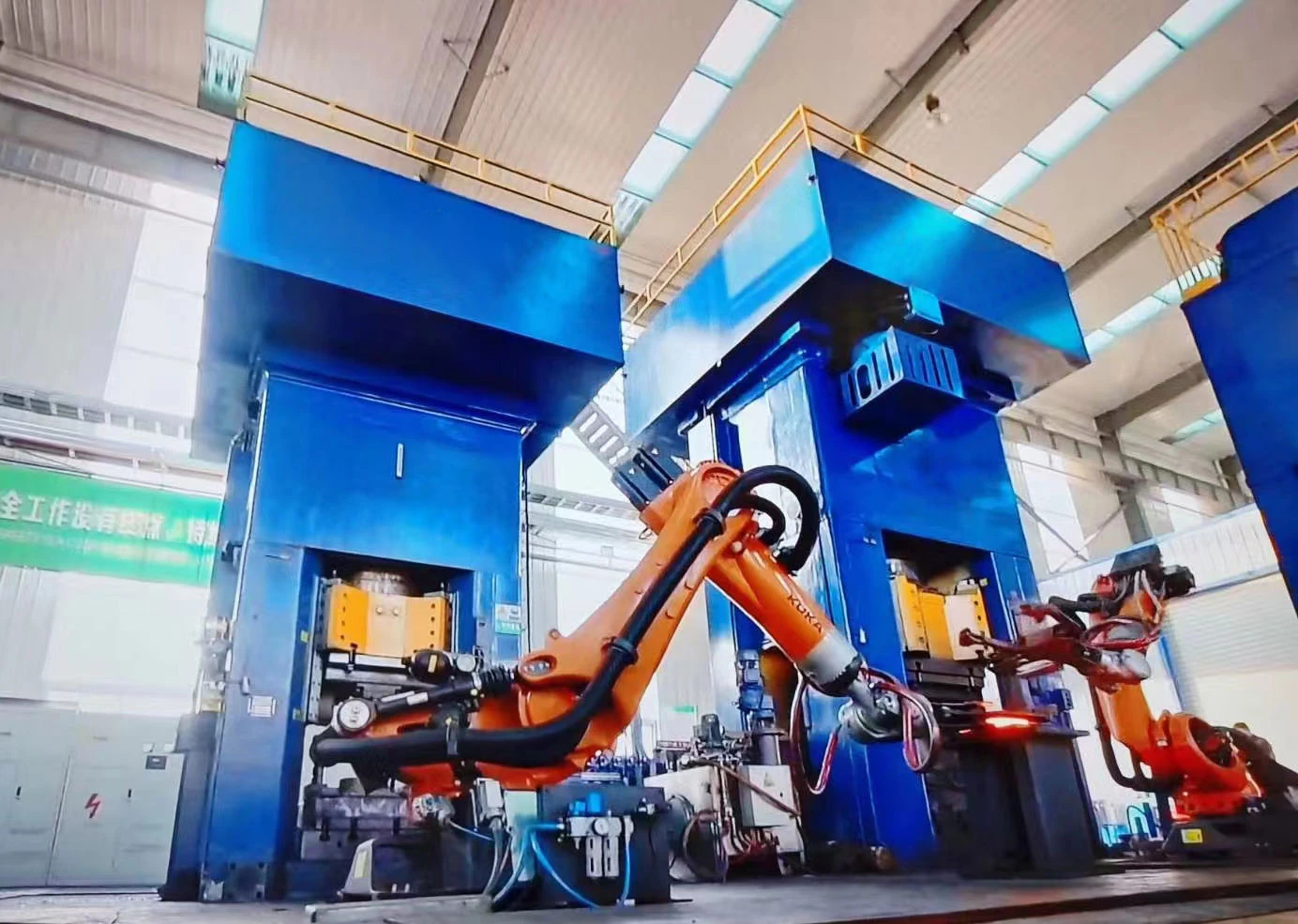

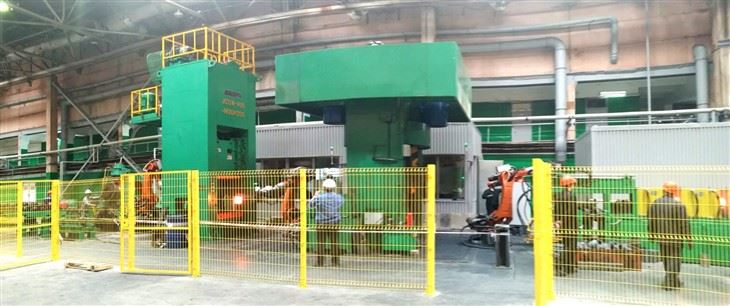

Upgraded J58K electric screw press forging line at indian customer site

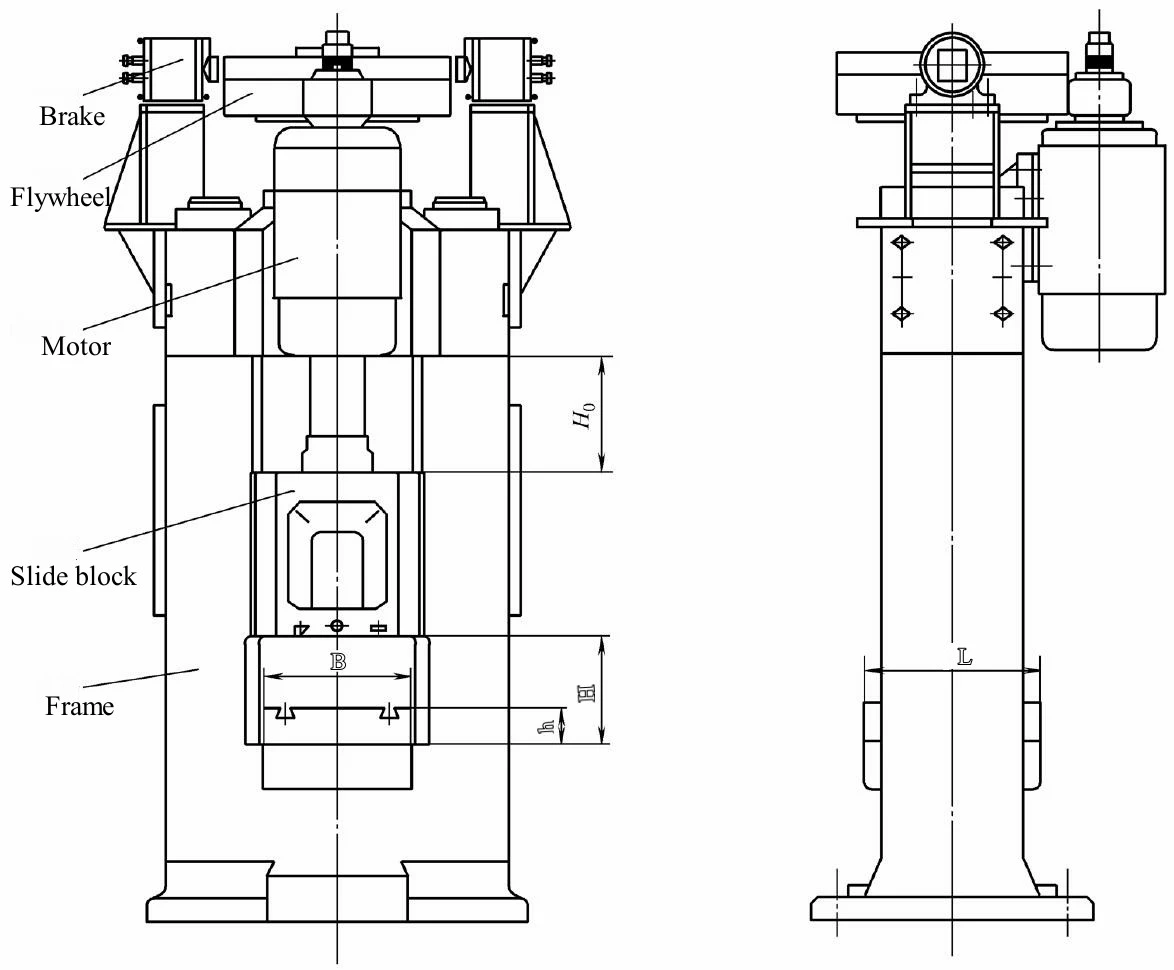

MAIN PARAMETER
| Model | Unit | J58K-300 | J58K-400 | J58K-630 | J58K-800 | J58K-1000 | J58K-1600 | J58K-2000 | J58K-2500 | |
|
Nominal Pressure |
kN | 3000 | 4000 | 6300 | 8000 | 10000 | 16000 | 20000 | 25000 | |
| Allowable Strike Force(Central Loading) | kN | 4800 | 6400 | 10000 | 12000 | 16000 | 25000 | 32000 | 40000 | |
| Energy of Moving Part | kJ | 26 | 40 | 80 | 105 | 160 | 290 | 380 | 550 | |
| Slide Stroke | mm | 400 | 410 | 500 | 500 | 550 | 650 | 650 | 700 | |
| Number of Stroke | min⁻¹ | 27 | 24 | 21 | 20 | 17 | 15 | 15 | 14 | |
| Minimum Die Loading Height | mm | 400 | 480 | 600 | 600 | 700 | 800 | 900 | 1050 | |
| Size of Bottom of Slider | Front&Back | mm | 660 | 760 | 920 | 920 | 1000 | 1250 | 1300 | 1450 |
|
Left&Right |
mm | 540 | 600 | 690 | 690 | 800 | 930 | 950 | 1250 | |
| Size of Working Table | Front&Back | mm | 670 | 820 | 920 | 920 | 1000 | 1250 | 1300 | 1450 |
| Left&Right | mm | 570 | 730 | 800 | 800 | 900 | 1100 | 1120 | 1400 | |
| Size of Table Base Plate | mm | 120 | 120 | 180 | 180 | 180 | 200 | 200 | 280 | |
| Overall Dimension | Left&Right | mm | 2800 | 3490 | 2920 | 2920 | 3560 | 5050 | 5050 | 4175 |
| Front&Back | mm | 1850 | 1910 | 2670 | 2670 | 3000 | 4400 | 4400 | 3890 | |
| Height | mm | 4300 | 4500 | 5545 | 5545 | 6395 | 6340 | 6500 | 8535 | |
| Power of Main Motor | kW | 45 | 55 | 110 | 132 | 132 | 2*132 | 2*160 | 2*220 | |
| Height above Ground | mm | 4330 | 4260 | 5245 | 5245 | 5628 | 5445 | 5545 | 7335 | |

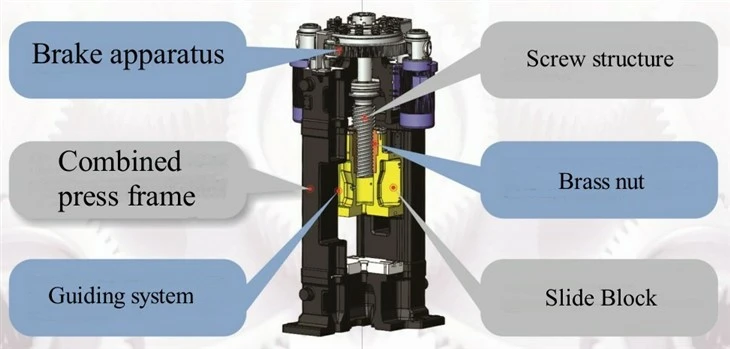

The J58K Series Electric Screw Press
The electric screw press utilizes a gear-driven mechanism. This drive system is characterized by several key features: it employs a specialized motor with high rotational speed and lower torque. Depending on the tonnage of the press, there are specific motors with corresponding power ratings, ensuring flexibility and efficiency. Should the motor require replacement due to malfunction, it's straightforward and hassle-free. Maintenance is both easy and straightforward. Additionally, the motor's performance remains unaffected even when the screw guide bushing shows signs of wear.
Features of electric screw press
- Equipped with an advanced intelligent control system
- Supports CNC fully automated production lines
- CrMoV high-alloy screw, more fatigue-resistant
- Squirrel-cage three-phase positive and reverse asynchronous motor drive, more reliable

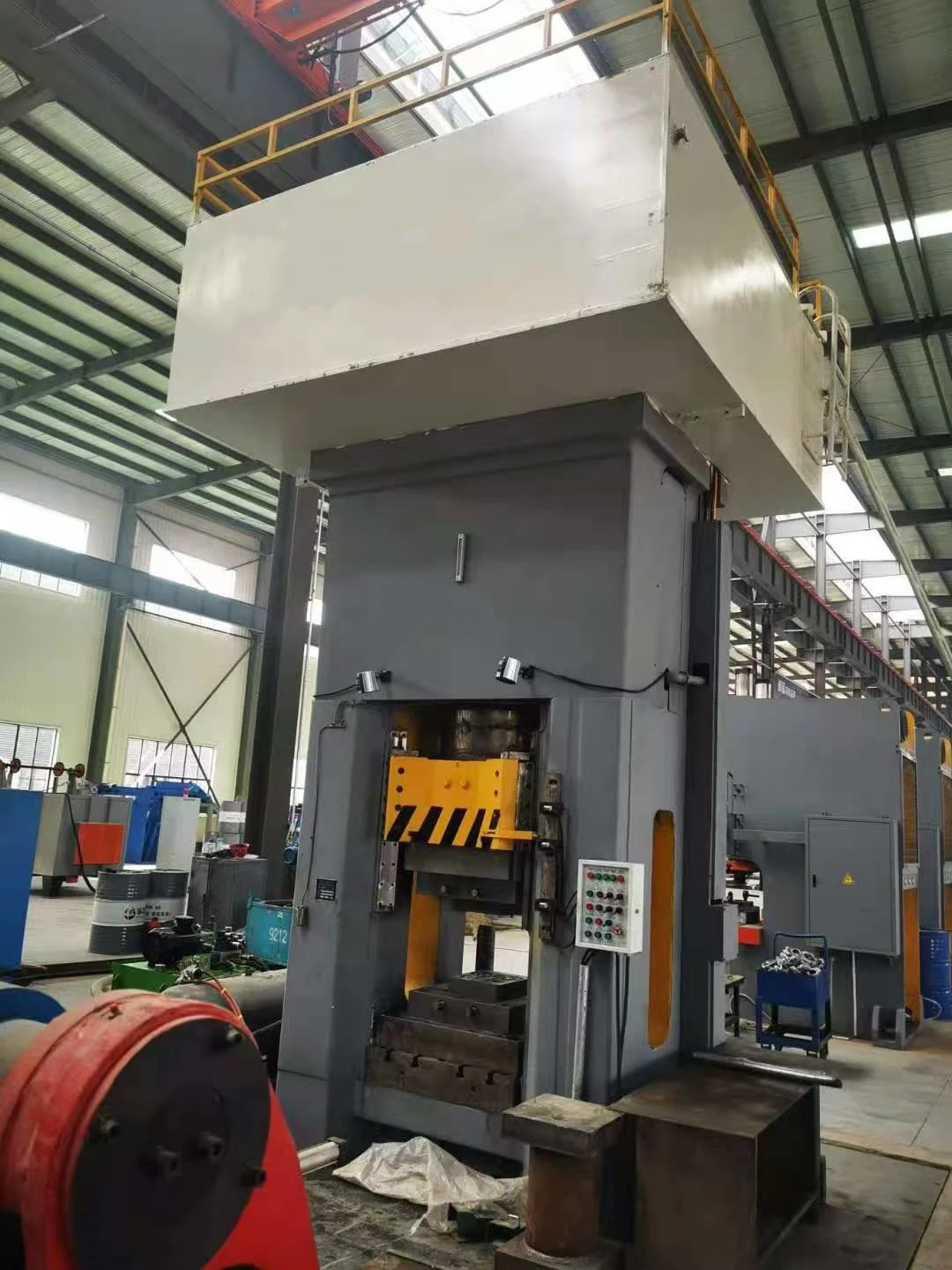

J58K Electric Screw Press Manual Production Test

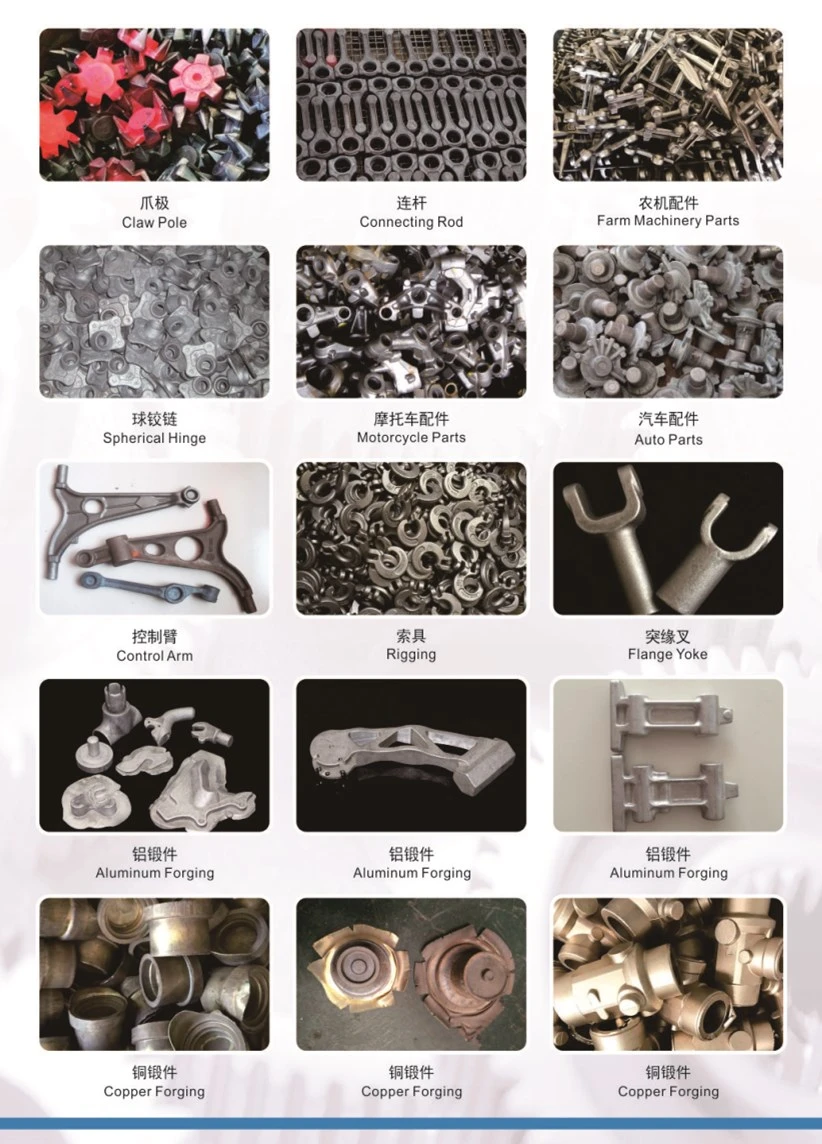

SHOWCASE
